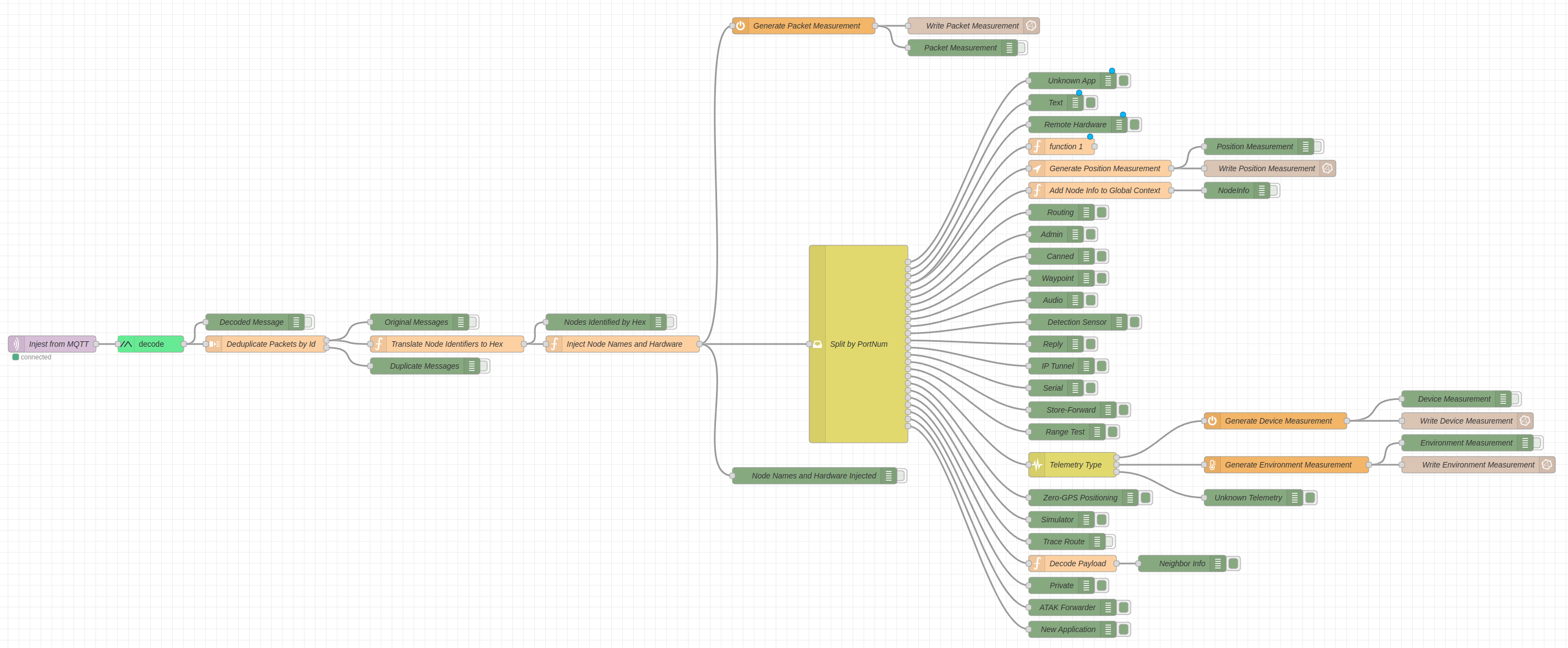

A ready-made Node-RED flow that turns Meshtastic mesh traffic into time-series data. It subscribes to your MQTT broker, decodes the protobuf packets, deduplicates them, resolves node names, and writes measurements to InfluxDB so you can chart your mesh in Grafana.

Features

Ingestion from MQTT
Protobuf decoding
Message deduplication by packet ID (5 minute window, so one packet heard by several gateways is stored once)
Annotate integer-based node IDs as hex
Annotate packets with known NodeInfo (long name, short name, hardware model)
Split by every current port number
Writing Mesh, Packet, Position, Device, Environment and Neighbor measurements to InfluxDB
Debug nodes on all outputs

Included subflows

Ingest from MQTT
Measurement: Mesh
Measurement: Packet
Measurement: Position
Measurement: Device Telemetry
Measurement: Environment Telemetry
Measurement: Neighbors

Requirements

Node-RED
An MQTT broker that your Meshtastic nodes publish to (Mosquitto works well)
InfluxDB 1.x (the flow uses the influxdb node with a database, not a v2 bucket)
These Node-RED palette modules, installed before importing the flow:
- @meshtastic/node-red-contrib-meshtastic
- node-red-contrib-influxdb

Quick start

Install the two palette modules above (Menu, Manage palette, Install).
Import meshtastic.json (Menu, Import, paste or select the file).

Edit the two config nodes to match your environment. The defaults assume a Docker network:

Node	Default	Change to
MQTT broker (`Mosquito`)	`mqtt-mosquitto:1883`	your broker host and port, plus credentials if you use them
InfluxDB (`Local InfluxDB`)	`influxdb:8086`, database `msh`	your InfluxDB host, and a database you have created

Make sure your Meshtastic nodes publish to the broker. The flow subscribes to msh/+/c/#.
Deploy. Packets should start appearing in the debug sidebar and in InfluxDB.

Measurements written

Measurement	Fields
`Mesh`	Links between nodes (source, target) with SNR and RSSI
`Packet`	Receive time, SNR, RSSI, hop limit, priority, delayed
`Position`	Latitude, longitude, altitude, satellites in view, ground speed and track, PDOP
`Device`	Battery level, voltage, channel utilization, TX air utilization
`Environment`	Temperature, relative humidity, barometric pressure, gas resistance
`Neighbor`	Neighbor links from NeighborInfo packets, with SNR

Every point is tagged with the sender and receiver (hex ID, short name, long name, hardware model), the channel and the gateway.

Status: archived

This project is archived and read-only. It is kept as a working reference for decoding Meshtastic MQTT traffic into InfluxDB with Node-RED.

It was last updated for Meshtastic firmware 2.2.15. Firmware 2.3.0 and later changed the MQTT payloads (see #11), so the "Ingest from MQTT" subflow needs modification before it will work with current firmware. You are welcome to fork it.

License

The Unlicense. Public domain.
